Carbide Materials

Cemented Carbide Rod Blanks

We offer the best IGETALLOY grades optimized for a variety of applications, including endmills, drills, and reamers; that demand strength, toughness and wear-resistance of the cutting edges.

Stocked Grades

  •
      Super ultra fine grained carbide "AF1"
    • Ultra fine grained carbide "A1"
    • Fine grained carbide "H1"
    • General cemented carbide "EH10"

    Other grades can be made-to-order.

    Product Configurations

    • Standard sintered rods
    • Endmill blanks
    • Drill blanks
    • PCB drill blanks
    • Rod blanks with oil-holes

    Dimension of Standard Mill Scale Rod

    • Outer diameter 1.0 to 8.0mm (in increments of 0.5mm)
    • Outer diameter 9.0 to 20.0mm (in increments of 1mm)
    • Length 50, 80, 100, or 310mm

Cemented Carbide Plate Blanks

An extensive lineup of stocked grades including the super ultra fine grained carbide "AF1" for molds.

Stocked Grades

  •
      Super ultra fine grained carbide "AF1"
    • Ultra fine grained carbide "A1"
    • "KH Series" KH03/KH05

    Other grades can be made-to-order.

    Dimensions of Stocked Plates

    • Length 100mm, width 60mm, thickness from 1.2 to 4.0mm
    • Length 150mm, width 60mm, thickness from 2.0 to 10.0mm

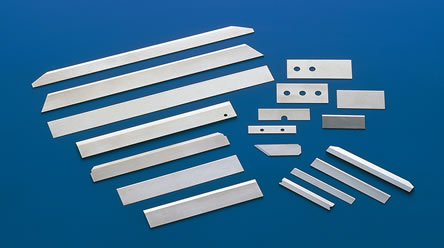

Cemented Carbide Thin Blades

The excellent edge integrity of ultra fine grained carbides exhibit superiority in cutting tape, fabric and paper.

Stocked Grades

  •
      Super ultra fine grained carbide "AF1"
    • Ultra fine grained carbide "A1"

    Other grades can be made-to-order.

    Cutting Edge Shapes (Typical)

    • Double-edged
    • Two-stepped
    • Drilled blanks

    Allowable Range for Manufacturing

    • Min. thickness: 0.08mm, Max. length: 200mm (The straightness of thickness 0.08mm × length 200mm will be 0.1mm.)
